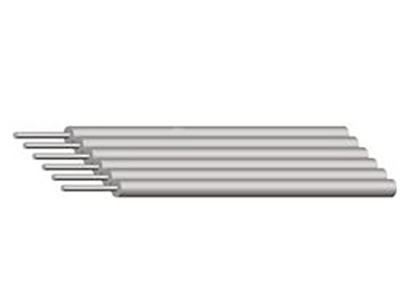

UL21458 Flat Ribbon Wire排線

所屬分類：UL低煙無鹵
瀏覽次數：0次
發布時間：2022-08-05 17:09:54

產品概述

■說明
●額定溫度：80°C
●額定電壓：300V
●參考標準：UL 758，UL 1581，CSA
C22.2 No.210
●導體使用絞合祼銅，鍍錫銅線
●導體線規：32 - 16AWG
●耐燃改性聚苯醚–聚乙烯絕緣
●燃燒等級：UL VW-1及CSA FT1垂直耐燃測試

■應用
●用于電子設備內部聯機

■PRODUCT DESCRIPTION
●Rated temperature: 80°C
●Rated voltage: 300V
●Reference standard: UL 758, UL 1581,
CSA C22.2 No.210
●Stranded bare or tinned copper conductor
●Gauge size: 32 - 16AWG
●mPPE-PE insulation
●Flammability grade: UL VW-1&CSA FT1 vertical flame test

■APPLICATION
●For internal wiring of electronic equipment

■產品結構CABLE CONSTRUCTION
Part No. 型號	Conductor 導體			Cores 芯數	Insulation 絕緣		Max. Conductor DC Resistance 最大導體電阻 (Ω/km)
Part No. 型號	AWG 線規	No./mm 線數/線徑	Diameter 線徑 (mm)	Cores 芯數	Material 材質	Diameter 線徑 (mm)	Max. Conductor DC Resistance 最大導體電阻 (Ω/km)
UL21458-001	28	7/0.127	0.38	2C	mPPE-PE	1.24 x 2.58	239
UL21458-002	26	7/0.16	0.48	2C		1.34 x 2.78	150
UL21458-003	24	7/0.20	0.6	2C		1.45 x 3.04	94.2
UL21458-004	22	7/0.254	0.76	2C		1.62 x 3.34	59.4
UL21458-005	20	26/0.16	0.94	2C		1.80 x 3.70	36.7
UL21458-006	18	41/0.16	1.18	2C		2.04 x 4.23	23.2
UL21458-007	28	7/0.127	0.38	3C		1.24 x 3.92	239
UL21458-008	26	7/0.16	0.48	3C		1.34 x 4.22	150
UL21458-009	24	7/0.20	0.6	3C		1.45 x 4.63	94.2
UL21458-010	22	7/0.254	0.76	3C		1.62 x 5.06	59.4
UL21458-011	28	7/0.127	0.38	4C		1.24 x 5.26	239
UL21458-012	26	7/0.16	0.48	4C		1.34 x 5.66	150
UL21458-013	24	7/0.20	0.6	4C		1.45 x 6.22	94.2
UL21458-014	22	7/0.254	0.76	4C		1.62 x 6.78	59.4
UL21458-015	28	7/0.127	0.38	5C		1.24 x 6.60	239
UL21458-016	26	7/0.16	0.48	5C		1.34 x 7.10	150
UL21458-017	24	7/0.20	0.6	5C		1.45 x 7.81	94.2
UL21458-018	22	7/0.254	0.76	5C		1.62 x 8.50	59.4
UL21458-019	28	7/0.127	0.38	6C		1.24 x 7.94	239
UL21458-020	26	7/0.16	0.48	6C		1.34 x 8.54	150
UL21458-021	24	7/0.20	0.6	6C		1.45 x 9.40	94.2
UL21458-022	22	7/0.254	0.76	6C		1.62 x 10.22	59.4
UL21458-023	28	7/0.127	0.38	7C		1.24 x 9.28	239
UL21458-024	26	7/0.16	0.48	7C		1.34 x 10.00	150
UL21458-025	24	7/0.20	0.6	7C		1.45 x 11.00	94.2
UL21458-026	22	17/0.16	0.76	7C		1.62 x 11.94	59.4
